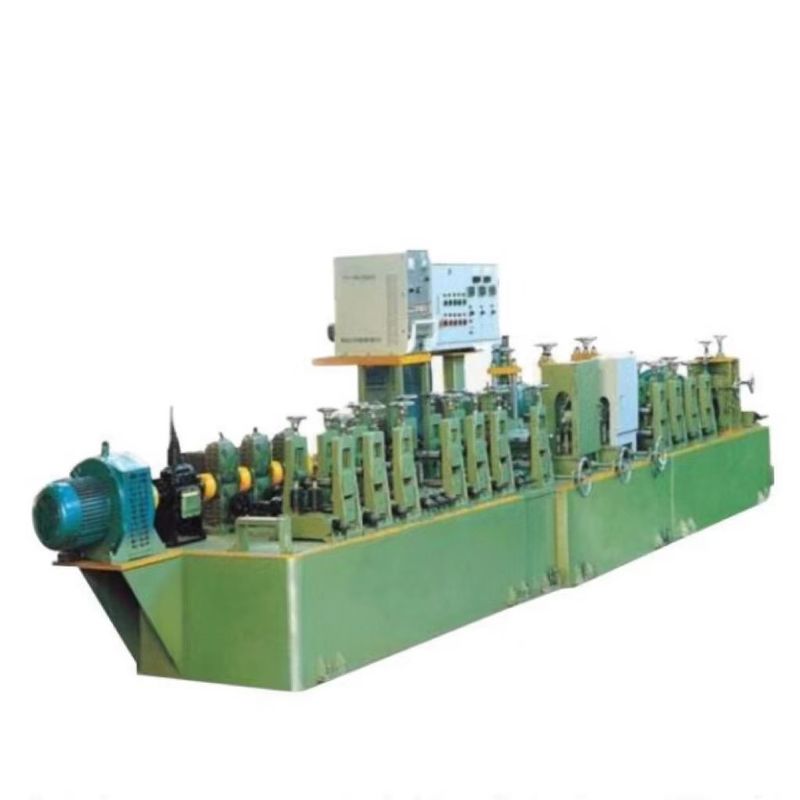

CC-GF-ZG Pipe Manufacturing Machine For Dry Fire Extinguisher 220V
  • CC-GF-ZG Pipe Manufacturing Machine For Dry Fire Extinguisher  220V
  • CC-GF-ZG Pipe Manufacturing Machine For Dry Fire Extinguisher  220V

CC-GF-ZG Pipe Manufacturing Machine For Dry Fire Extinguisher 220V

Place of Origin China
Brand Name Safeway Fire
Certification Normal
Model Number CC-GF-ZG
Product Details
Color:
Green
Material:
Steel Plate
Productivity:
300pcs/hour
Machine Type:
Pipe Production Line
Weight:
4500KGS
Dimension:
8000x2200x1000mm
Pipe Material:
Iron
Maximum Pipe Diameter:
165mm
High Light:

Fire Extinguisher Pipe Manufacturing Machine 165mm

,

Dry Extinguisher Pipe Making Machine

,

Pipe Fire Extinguisher Making Machine 220V

Product Description

Fire Extinguisher Pipe Manufacturing Machine CC-GF-ZG



1. Product Description:
1. Tube forming:The pipe making machine adopts the principle of extrusion molding with molds. The steel plate is initially extruded through 13 sets of molds in the front section.Turn the original steel plate into a circular tube.
2.Welding: After the steel plate is made into a circular tube, it is extruded inside through two sets of welding molds, and the sides of the steel strip are squeezed together until perfect.The gap is welded through a 500A ultrasonic argon arc welding machine, which makes the steel strip join together to become a tube.
3.Determination of diameter:The welded pipe enters the diameter forming part of the back section, and the welded pipe is squeezed up, down, left and right through 8 sets of diameter forming molds.Make the diameter and roundness of the tube to the required size.
4.Tube straightening:Through the diameter of the shaped tube into a set of straightening frame.The straightness of pipe is adjusted by the straightening frame so that the straightness of pipe can reach the required range.
5.Cutting:The finished pipe is put into the cutter and cut according to the required length.



2. Details

Item Fire Extinguisher Pipe Manufacturing Machine Product Capacity 300pcs/hour
Power 0.1kw Model Number CC-GF-ZG
Voltage 220V Place of Origin China
Machine type Pipe Production Line Maximum pipe diameter 165mm
Dimensions 8000x2200x1000mm Weight 4500kgs



3. Feature Advantage
1. Professional technical team with more than 14 years’ experience in fire extinguisher industry
2. Internationalized sales team with 100% working enthusiasm
3. Fast preparation and delivery of goods.
4. Easy to use.
5. Direct Manufacturer =High Quality +Competitive price + Good Service

CC-GF-ZG Pipe Manufacturing Machine For Dry Fire Extinguisher  220V 0







FAQ
Q: Why choose us?
A: 1)More than Ten Years experience
2)Directly manufacture factory with competitive price and quality control.
3)Our factory is near to Ningbo and Shanghai airport, which provide us with convenient transport
4) Better Quality , Better Packing , Better Service.
Q: Have fire extingisher 100% assembled well in stock?
A: No, all fire exinguisher will be newly produced according to your orders.
Q: About OEM service.
A: Your company name and logo can be printed on our fire extinguisher. Welcome OEM service.
