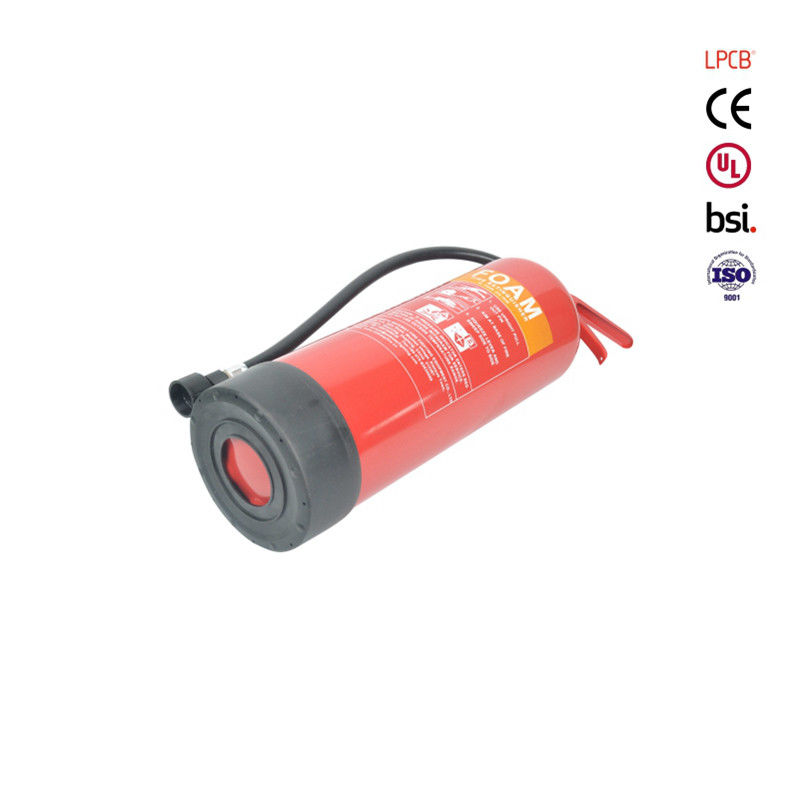

ST12 9 Litre Foam Spray Fire Extinguisher 14Bar Working Pressure
1) Pick up the extinguisher from the wall support and keep it in hand on the leverage.
2) Pull out the safety pin from the valve and use the other hand to hold the handle of the horn.
3) Squeeze the upper lever of the valve and aim the jet at the base of the burning material, sweep the extinguishing agent right and left uniformly on the fire, In case of fire of inflammable liquids don’t approach too much. You need trained people to use properly.
The fire extinguishing principle of foam fire extinguisher is that when extinguishing a fire, it can spray a large amount of carbon dioxide and foam, which can adhere to the combustibles to isolate the combustibles from the air, so as to achieve the purpose of extinguishing the fire. Foam extinguishers are divided into portable foam extinguishers, wheeled foam extinguishers and air foam extinguishers.
Foam Concentrate Fire Extinguisher
Item No. |
SWWF-01 |
SWWF-02 |
SWWF-06 |
SWWF-09 |
SWWF-12 |
Capacity |
1L |
2L |
6L |
9L |
10L |
Out-Diameter |
90mm |
110mm |
160mm |
182mm |
182mm |
Cylinder Height |
250mm |
305mm |
420mm |
500mm |
550mm |
Carton Size |
49*20*33cm/10pcs |
36*24*40cm/4pcs |
52*33*17cm/pc |
19*19*60cm/pc |
19*19*65cm/pc |
Gross Weight |
16.5KG |
21KG |
18KG |
13KG |
14.5KG |
Temperature Range |
-30~+60C |
-30~+60C |
-30~+60C |
-30~+60C |
-30~+60C |
Max Working Pressure |
14Bar |
14Bar |
14Bar |
14Bar |
14Bar |
Test Pressure |
25Bar |
25Bar |
25Bar |
25Bar |
