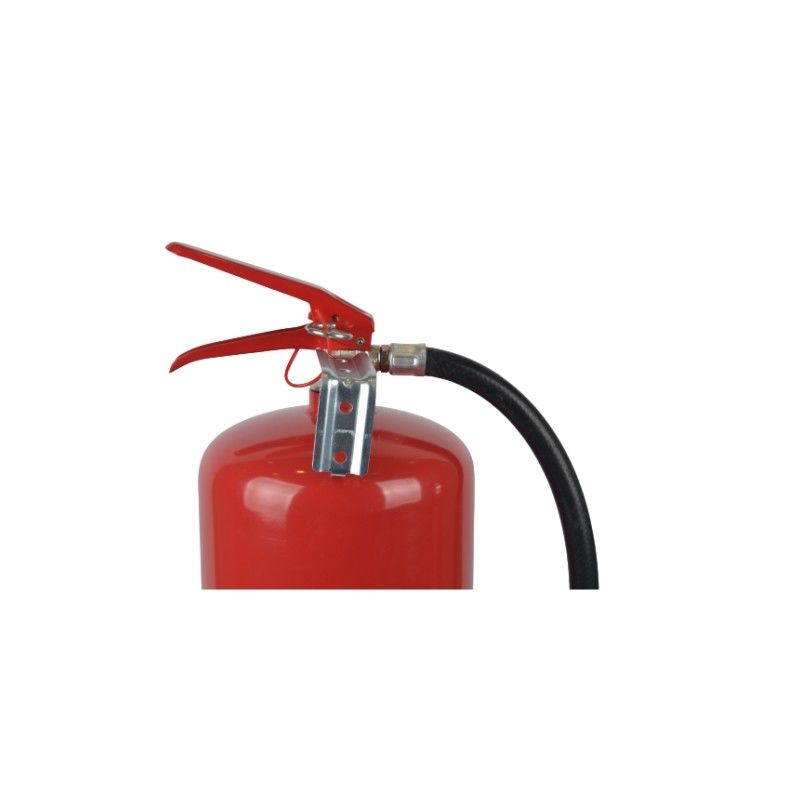

9L CE/ BSI EN3 Approved Water Fire Extinguisher With Red Color
1).Water extinguishers are mostly used for class A fire risk. In most premises, it is necessary to have either
foam or water extinguishers. It has a bright red label.
2).This type of extinguisher is used for fires caused by various organic materials including fabrics, textiles,
coal, wood, cardboard and paper among others. It should not be used for kitchen fires, fires caused by
flammable gas and liquids as well as fires that involve electrical equipment.
3).The type of businesses or premises where these extinguishers are needed include buildings made of
wood or organic materials or business premises containing certain types of organic materials such as
hospitals, schools, offices, warehouses and residential properties. Most of the buildings require either
foam or water extinguishers.
PRODUCT SPECIFICATIONS
Item No. | SWWF-01 | SWWF-02 | SWWF-03 | SWWF-04 | SWWF-06 | SWWF-09 | SWWF-10 |
Capacity | 1L | 2L | 3L | 4L | 6L | 9L | 10L |
Out-Dia | 90mm | 110mm | 130mm | 130mm | 160mm | 182mm | 182mm |
Cylinder Height | 250mm | 305mm | 353mm | 410mm | 420mm | 500mm | 550mm |
Temperature Range | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ |
MAX W.P. | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar |
Test Pressure | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar |
Material | St12 | St12 | St12 | St12 | St12 | St12 | St12 |
Carton Size | 49*20*33cm/10pcs | 36*24*40cm/6pcs | 45*27*14cm/2pcs | 50*27*14cm/2pcs | 52*33*17cm/2pcm | 19*19*60cm/pc | 19*19*65cm/pc |
Gross Weight | 16.5KG | 21KG | 10KG | 12.8KG | 18KG | 13KG | 14.5KG |
1. European standard extinguisher manufactured with ISO, CE and EN3 certificate.
