Place of Origin | China |
Brand Name | Safeway Fire |
Certification | Normal |
Model Number | SWDF-03 |

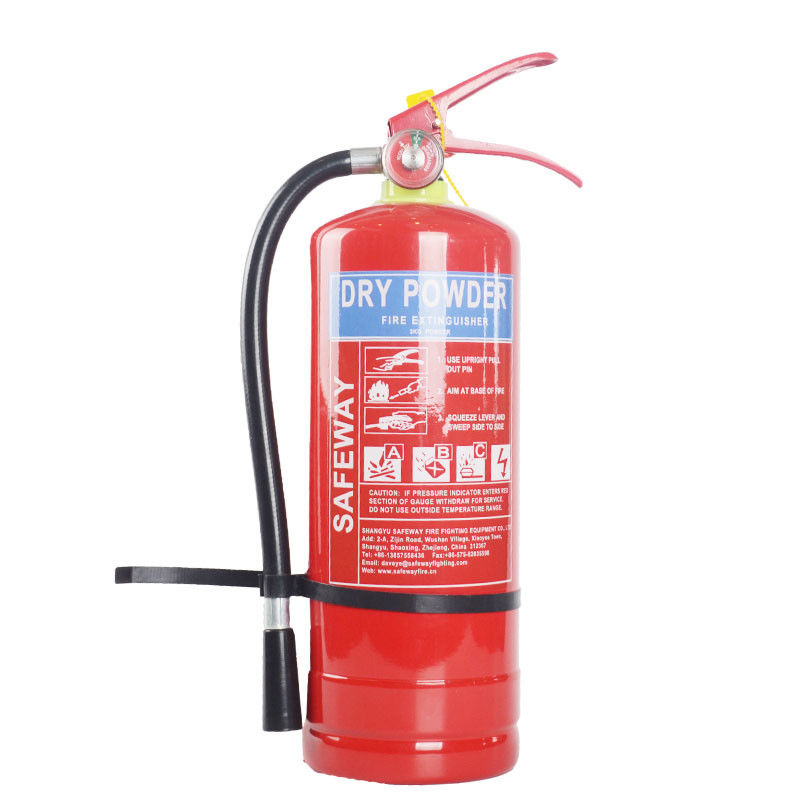

3kg Wholesale Portable Dry Powder Fire Extinguisher For Wide Use
1. All Amerex extinguishers are furnished with a detailed “Owners Manual” containing valuable information. The manual contains information on the installation, use and maintenance of the extinguisher. The extinguisher nameplate (label) contains specific information on “HOW TO USE” the particular extinguisher.
2. ABC or Multi-Purpose extinguishers utilize a specially fluidized and siliconized mono ammonium phosphate dry chemical. It chemically insulates Class A fires by melting at approximately 350°F and coats surface to which it is applied. It smothers and breaks the chain reaction of Class B fires and will not conduct electricity back to the operator.
3. Designed for Class A fires Ordinary Combustibles: wood, paper, cloth, trash and other ordinary materials or Class B fires Flammable Liquids & Gases such as gasoline, oils, paint lacquer and tar. or Class C fires involving live electrical equipment
1. The standard dry powder extinguishers are also known as ABC extinguishers as these can be used for
class A, class B and class C fires.
2. Dry powder extinguishers smother fires by forming a barrier between the fuel and source of oxygen.
The label colour for this type of extinguisher is blue.
PRODUCT SPECIFICATIONS
Item No. | SWDC-01 | SWDC-02 | SWDC-03 | SWDC-04 | SWDC-4.5 | SWDC-06 | SWDC-09 | SWDC-12 |
Capacity | 1KG | 2KG | 3KG | 4KG | 4.5KG | 6KG | 9KG | 12KG |
Out-Dia | 90mm | 110mm | 130mm | 130mm | 135mm | 160mm | 180mm | 190mm |
Cylinder Height | 250mm | 305mm | 353mm | 410mm | 425mm | 420mm | 500mm | 570mm |
Temperature Range | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ |
MAX W.P. | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar |
Test Pressure | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar |
Material | St12 | St12 | St12 | St12 | St12 | St12 | St12 | St12 |
Carton Size |
49*20*33 |
36*24*40 |
45*27*14 |
50*27*14 |
52*29*15 |
52*33*17 |
19*19*60 |
19*19*70 |
Gross Weight | 17KG | 21.5KG | 10.5KG | 13KG | 14.8KG | 18KG | 13.5KG | 17.5KG |
PRODUCT DETAILS
• 6 Year Mfr Warranty
• Stored Pressure Design
• Dependable Drawn Steel Cylinders
• Durable High Gloss Polyester Powder Paint
• All Metal Valve Construction
• Anodized Aluminum Valve Body & Handle & Lever
• Temperature Range -65°F to 120°F
• USER FRIENDLY
• Easy and More Economical to Maintain and Service
• Large Loop Pull Pin
• Bar Coded and Bi-lingual Labels
