Dry Powder Fire Extinguisher
>
|
| Place of Origin | China |
| Brand Name | Safeway Fire |
| Certification | Normal |
| Model Number | SWDF-01 |

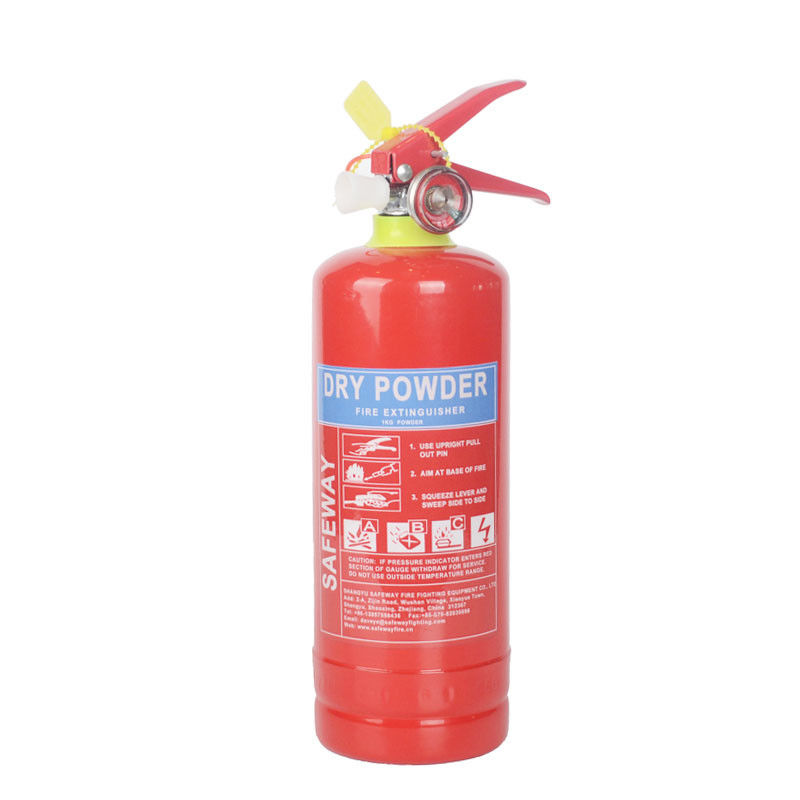

1kg Factory Portable Dry Powder Fire Extinguisher For Wide Use
1. Dry powder extinguishers smother fires by forming a barrier between the fuel and source of oxygen.
The label colour for this type of extinguisher is blue.
2.This type of fire extinguisher may be used for fires caused by various organic materials including
wood, coal, textiles, fabrics, cardboard and paper among others.
3. Any fires that involve electrical equipment up to 1000 V may also be dealt with the help of this fire extinguisher.
PRODUCT SPECIFICATIONS
| Item No. | SWDF-0.5 | SWDF-01 | SWDF-02 | SWDF-03 | SWDF-04 | SWDF-4.5 | SWDF-05 | SWDF-06 | SWFP-08 | SWFP-09 | SWFP-10 | SWFP-12 |
| Capacity | 0.5KG | 1KG | 2KG | 3KG | 4KG | 4.5KG | 5KG | 6KG | 8KG | 9KG | 10KG | 12KG |
| Out-Dia | 67mm | 90mm | 110mm | 130mm | 130mm | 130mm | 140mm | 160mm | 160mm | 182mm | 182mm | 182mm |
| Cylinder Height | 230mm | 250mm | 305mm | 350mm | 410mm | 410mm | 420mm | 420mm | 500mm | 500mm | 550mm | 600mm |
| Powder Weight | 0.5KG | 1KG | 2KG | 3KG | 4KG | 4.5KG | 5KG | 6KG | 8KG | 9KG | 10KG | 12KG |
|
Thick -ness |
0.9mm | 0.9mm | 1mm | 1.2mm | 1.2mm | 1.2mm | 1.2mm | 1.2mm | 1.2mm | 1.5mm | 1.5mm | 1.5mm |
|
Temp Range |
-30℃~ +60℃ |
-30℃~ +60℃ |
-30℃~ +60℃ |
-30℃~ +60℃ |
-30℃~ +60℃ |
-30℃~ +60℃ |
-30℃~ +60℃ |
-30℃~ +60℃ |
-30℃~ +60℃ |
-30℃~ +60℃ |
-30℃~ +60℃ |
-30℃~ +60℃ |
| MAX W.P. | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar |
| Test Pressure | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar | 25Bar |
| Material | St12 | St12 | St12 | St12 | St12 | St12 | St12 | St12 | St12 | St12 | St12 | St12 |
| Carton Size |
37.5*15* 30cm/10 pcs |
49*20*33 cm/10pcs |
36*24*40 cm/6pcs |
45*27*14 cm/2pcs |
50*27*14 cm/2pcs |
52*29*15 cm/2pcs |
52*29*15 cm/2pcs |
52*33*17 cm/2pcs |
17*17*60 cm/pc |
19*19*60 cm/pc |
19*19*65 cm/pc |
19*19*70 cm/pc |
| Gross Weight | 13KG | 16.5KG | 21KG | 10KG | 12.8KG | 14.4KG | 16KG | 17.6KG | 11.5KG | 13KG | 14.5KG | 17KG |
1.European standard extinguisher manufactured with ISO, CE and EN3 certificate.
