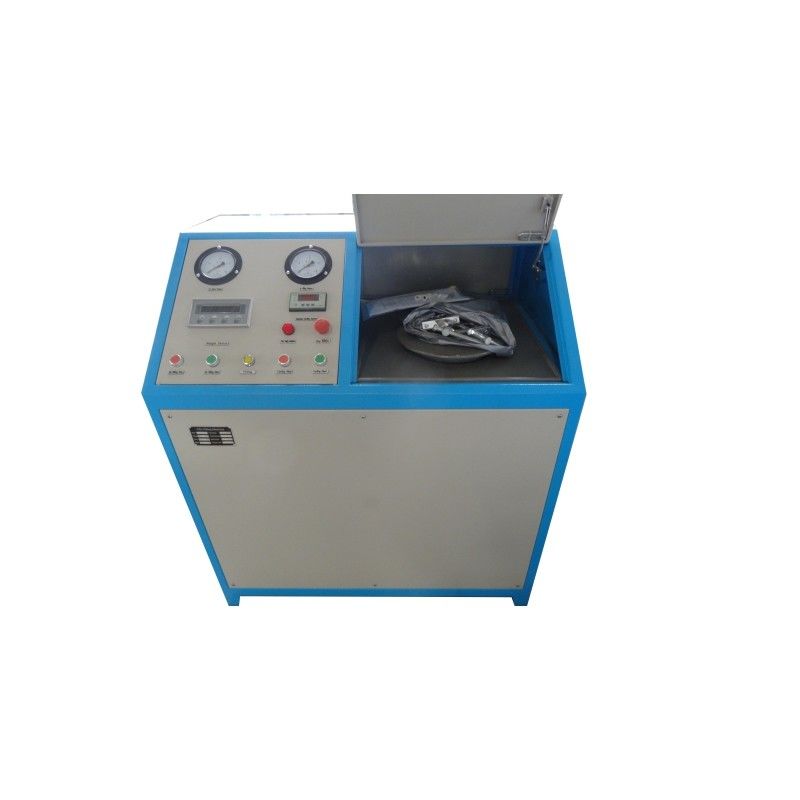

Fire Extinguisher Refill Machine
>
|
| Place of Origin | China |
| Brand Name | Safeway Fire |
| Model Number | GMT-C |
Working Temperature and Pressure Parameters of the Thermostat of the Filler
A. Thermal uniform temperature is controlled in the range of 38℃–45℃ with a pressure of 9-10Mpa, heater power of 6KW and voltage of 220V.
B. Cold uniform temperature is controlled in the range of –5℃—5℃with a pressure of ≤7Mpa and power source voltage of 220V.
| Items | MT2 | MT3 | MT5 | MT7 |
| Weight of extinguisher(kg) |
0 2-0.15 |
0 3-0.15 |
0 5-0.2 |
0 7-0.2 |
| Filling time(s) | ≤50 | ≤60 | ≤60 | ≤90 |
| Item | Host computer | Cold oven | Hot Bath |
| Power | 0.1kw | 0.75kw | 3kw |
| Voltage | 220v/50hz | 220v/50hz | 220v/50hz |
| Net weight | 30kg | 135kg | 59kg |
| Dimensions | 550*510*1030mm | 6108*780*1080mm | 1380*620*450mm |
| Filling speed | ≥3kg/min | - | - |
