| Place of Origin | China |
| Brand Name | Safeway Fire |
| Model Number | GMT-C |
2.Medial- pressure tank can be used CO2 filling.
3.Filler must connect with CO2 steel flask while on filling.
4.Working Temperature and Pressure Parameters of the Thermostat of the Filler
A. Thermal uniform temperature is controlled in the range of 38℃–45℃ with a pressure of 9-10Mpa, heater power of 6KW and voltage of 220V.
B. Cold uniform temperature is controlled in the range of –5℃—5℃with a pressure of ≤7Mpa and power source voltage of 220V.
| Items | MT2 | MT3 | MT5 | MT7 |
| Weight of extinguisher(kg) |
0 2-0.15 |
0 3-0.15 |
0 5-0.2 |
0 7-0.2 |
| Filling time(s) | ≤50 | ≤60 | ≤60 | ≤90 |

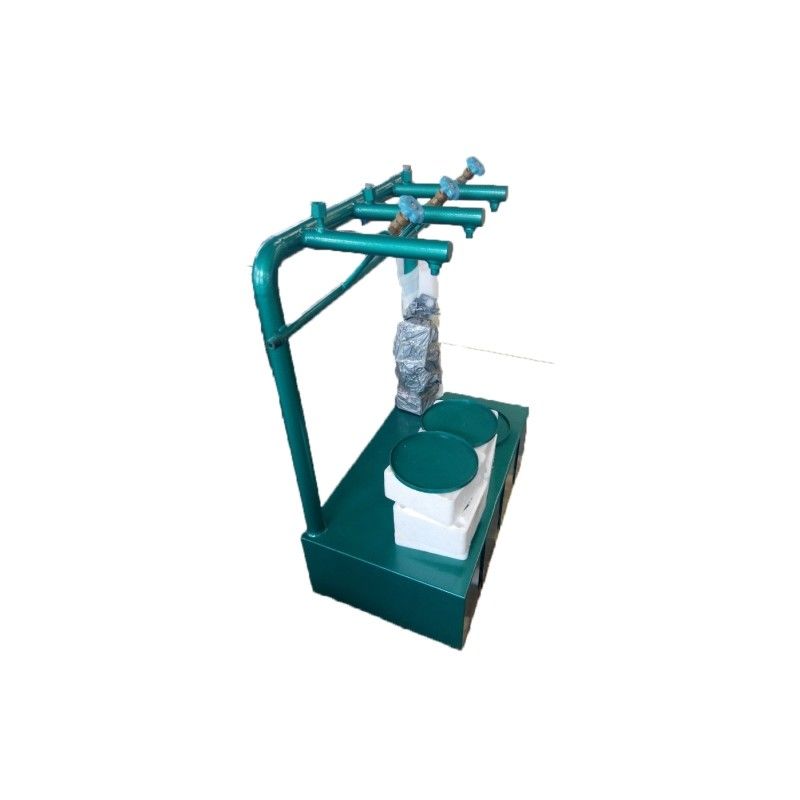

Co2 Fire Extingusiher Filling Machine
| Item | Host computer | Cold oven | Hot Bath |
| Power | 0.1kw | 0.75kw | 3kw |
| Voltage | 220v/50hz | 220v/50hz | 220v/50hz |
| Net weight | 30kg | 135kg | 59kg |
| Dimensions | 550*510*1030mm | 6108*780*1080mm | 1380*620*450mm |
| Filling speed | ≥3kg/min | - | - |
